BACnet Device

This project provides SolarNode plugin that can collect arbitrary data from BACnet enabled devices. This is an advanced plugin that requires knowledge of BACnet and the BACnet configuration of the devices you want to collect data from.

This component is included in the solarnode-app-bacnet package in SolarNodeOS. You can install this package on the System > Packages page in SolarNode.

Use

Once installed, a new BACnet Device component will appear on the Settings > Components page on your SolarNode. Click on the Manage button to configure components.

This datum source can persist datum based on a schedule and also based on BACnet change-of-value (COV) events, if the BACnet device you're collecting data from supports COV subscriptions. The Persist Mode device setting configures this. Regardless of when datum are persisted, transient datum will be generated for each COV event and other plugins can do things with those. For example, those datum could be posted to SolarFlux for real-time monitoring.

Tip

Although this component is named BACnet Device Datum Source, a single component instance can be configured to read data from any number of physical BACnet devices. The term BACnet Device (upper case D) in this guide refers to this SolarNode component, while BACnet device (lower case d) refers to a BACnet hardware/softare device this component will read data from.

CSV Configurer

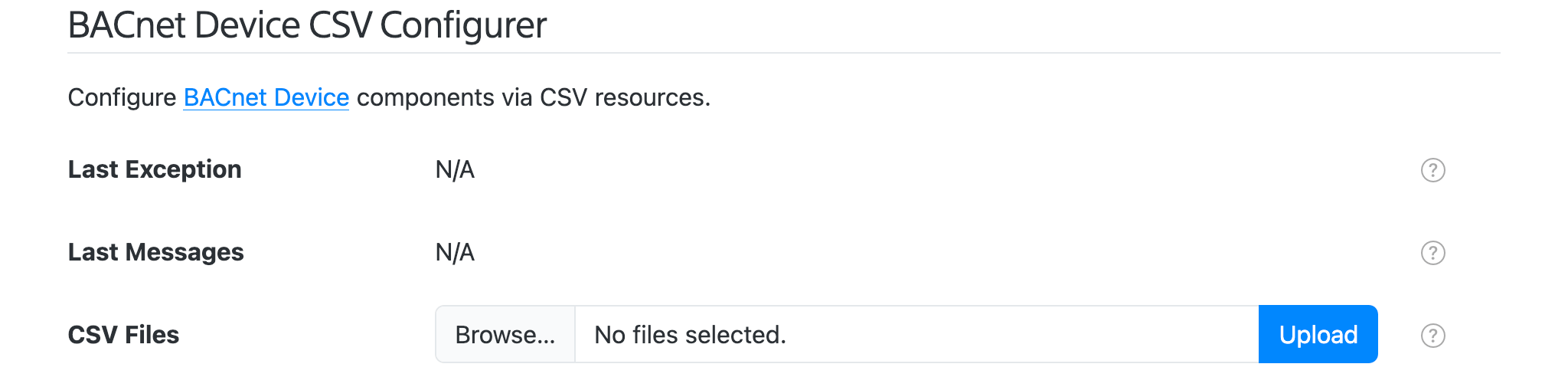

SolarNode supports configuring BACnet Device components using a simple comma-separated-values (CSV) file, which spreadsheet applications can easily generate. A BACnet Device CSV Configurer form will appear on the Settings > Services page. This form lets you upload a BACnet CSV Configuration file to configure all BACnet Device components at once, without having to use the settings form.

Spreadsheet jumpstart

You can copy the BACNet Device Configuration Example sheet as a starting point. This sheet has drop-down menu validation to make it super easy to configure your BACnet integration. Download your completed Sheet as a CSV file, then use the BACnet Device CSV Configurer form to upload the CSV file and configure SolarNode.

BACnet CSV Configuration Format

The BACnet CSV Configuration uses the column structure detailed below, with each row representing an individual datum property to read from the BACnet device. A header row is required. Comment lines are allowed, just start the line with a # character (i.e. the first cell value). The entire comment line will be ignored.

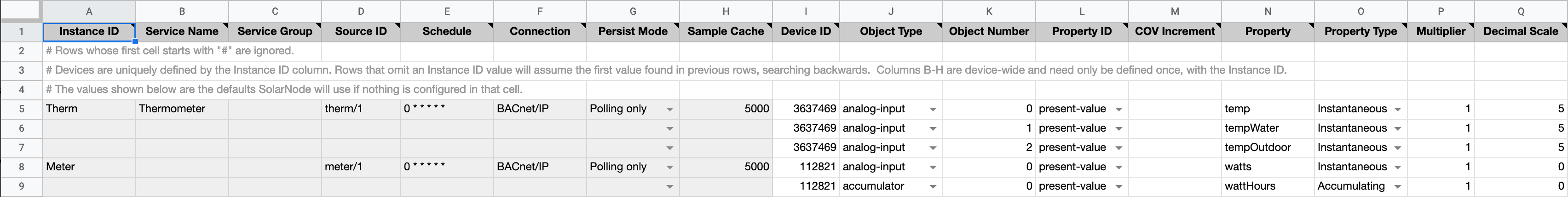

Here's an example screen shot of a configuration in a spreadsheet application. It is for two devices:

1. Device Therm with 3 datum properties: temp, tempWater, and tempOutdoor
2. Device Meter with 2 datum properties: watts and wattHours

Spreadsheet applications typically allow you to export the sheet in the CSV format, which can then be loaded into SolarNode via the CSV Configurer.

Instance identifiers

Individual BACnet Device components are defined by the first column (Instance ID). You can assign any identifier you like (such as Meter, Inverter, and so on) or configure as a single dash character - to have SolarNode assign a simple number identifier. Once an Instance ID has been assigned on a given row, subsequent rows will use that value if the corresponding cell value is left empty.

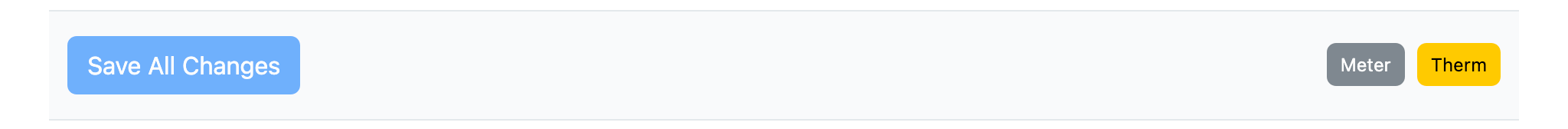

Here's an example of how 2 custom instance IDs Meter and Therm appear in the SolarNode UI:

CSV column definition

The following table defines all the CSV columns used by BACnet Device CSV Configuration. Columns A - H apply to the entire BACnet Device configuration, and only the values from the row that defines a new Instance ID will be used to configure the device. Thus you can omit the values from these columns when defining more than one property for a given instance.

Columns I - Q define the mapping of BACnet object properties to datum properties: each row defines an individual datum property.

Col	Name	Type	Default	Description
A	Instance ID	string		The unique identifier for a single BACnet Device component. Can specify - to automatically assign a simple number value, which will start at 1.
B	Service Name	string		An optional service name to assign to the component.
C	Service Group	string		An optional service group to assign to the component.
D	Source ID	string		The SolarNetwork datum source ID to use for the datum stream generated by this device configuration.
E	Schedule	string	0 * * * * *	The schedule at which to poll the BACnet device for data. Can be either a cron value or a millisecond frequency.
F	Connection	string		The Service Name of the BACnet Connection to use.
G	Persist mode	string	Polling only	Controls when to persist datum. One of Events only, Events and polling, or Polling only, or shortened to EventOnly, EventAndPoll, or PollOnly.
H	Sample Cache	integer	5000	A maximum time to cache captured BACnet data, in milliseconds.
I	Device ID	integer		The BACnet device ID to collect data from.
J	Object Type	string		The BACnet object type to collect data from. Can be specified as a name, like analog-input or AnalogInput, or the associated integer code, like 0.
K	Object Number	integer		The BACnet object type instance number to collect data from.
L	Property ID	string	present-value	The BACnet object property identifier to collect data from. Can be specified as a name, like present-value or PresentValue, or the associated integer code, like 85.
M	COV Increment	decimal		An optional change-of-value (COV) event threshold to request when subscribing to COV events, essentially filtering the COV events unless the property value has changed by at least this amount.
N	Property	string		The datum property name to use. Property names represent what the associated data value is, and SolarNetwork has many standardized names that you should consider using.
O	Property Type	enum	Instantaneous	The type of datum property to use. Must be one of Instantaneous, Accumulating, Status, or Tag, and can be shortened to just i, a, s, or t.
P	Multiplier	decimal	1	For numeric data types, a multiplier to apply to the BACnet value to normalize it into a standard unit.
Q	Decimal Scale	integer	5	For numeric data types, a maximum number of decimal places to round decimal numbers to, or -1 to not do any rounding.

Example CSV

Here is the CSV as shown in the example configuration screen shot above (comments have been removed for brevity):

Instance ID,Service Name,Service Group,Source ID,Schedule,Connection,Persist Mode,Sample Cache,Device ID,Object Type,Object Number,Property ID,COV Increment,Property,Property Type,Multiplier,Decimal Scale
Therm,Thermometer,,therm/1,0 * * * * *,BACnet/IP,Polling only,5000,3637469,analog-input,0,present-value,,temp,Instantaneous,1,5
,,,,,,,,3637469,analog-input,1,present-value,,tempWater,Instantaneous,1,5
,,,,,,,,3637469,analog-input,2,present-value,,tempOutdoor,Instantaneous,1,5
Meter,,,meter/1,0 * * * * *,BACnet/IP,Polling only,5000,112821,analog-input,0,present-value,,watts,Instantaneous,1,0
,,,,,,,,112821,accumulator,0,present-value,,wattHours,Accumulating,1,0

Settings

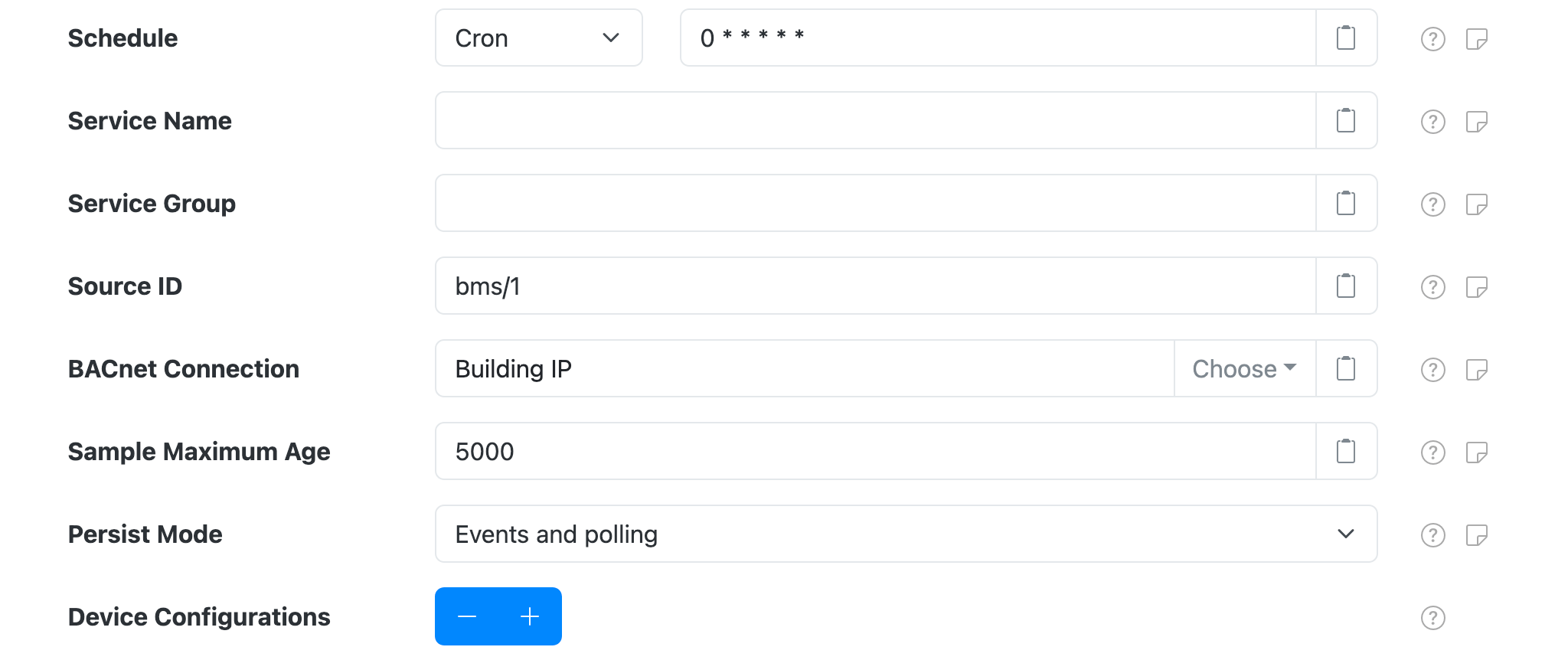

Each BACnet Device component collects data for a single source ID, and contains the following overall settings:

Setting	Description
Schedule	A cron schedule that determines when data is collected, or millisecond frequency.
Service Name	A unique name to identify this data source with.
Service Group	A group name to associate this data source with.
Source ID	The SolarNetwork unique source ID to assign to datum collected by this component. This value uniquely identifies the data collected from this device, by this node, on SolarNetwork. Each configured device should use a different value.
BACnet Connection	The Service Name of the BACnet Connection to use.
Sample Maximum Age	A minimum time to cache captured Modbus data, in milliseconds. SolarNode will cache the data collected from the device for at least this amount of time before refreshing data from the device again. Some devices do not refresh their values more than a fixed interval, so this setting can be used to avoid reading data unnecessarily. This setting also helps in highly dynamic configurations where other plugins request the current values from this datum source frequently.
Persist Mode	Controls when to persist datum. Event modes relate to change-of-value subscription updates published by the associated BACnet devices. Polling modes relate to the schedule configured on this component.
Device Configurations	A list of BACnet device-specific settings. Any number of device configurations can be added, to collect data from any number of BACnet devices.

Device settings

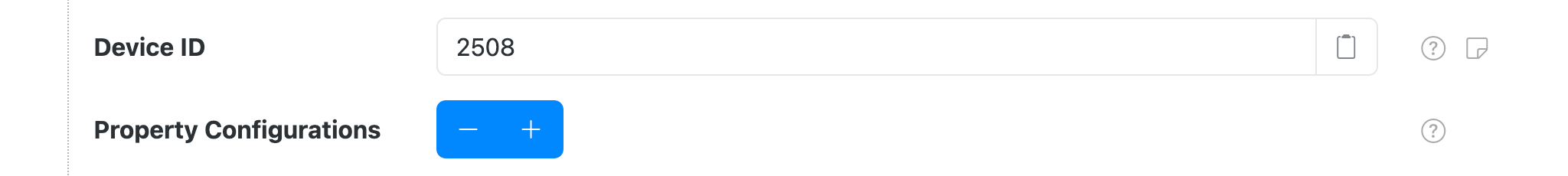

You must configure settings for each BACnet device you want to collect data from. Every BACnet device within a BACnet network is identified by a unique device ID. You can configure as many device settings as you like, using the + and - buttons to add/remove configurations.

Each device configuration contains the following settings:

Setting	Description
Device ID	The BACnet device ID to collect data from.
Property Configurations	A list of BACnet object property-specific settings. Any number of property configurations can be added, to collect data from any number of object properties on the associated BACnet device.

Property settings

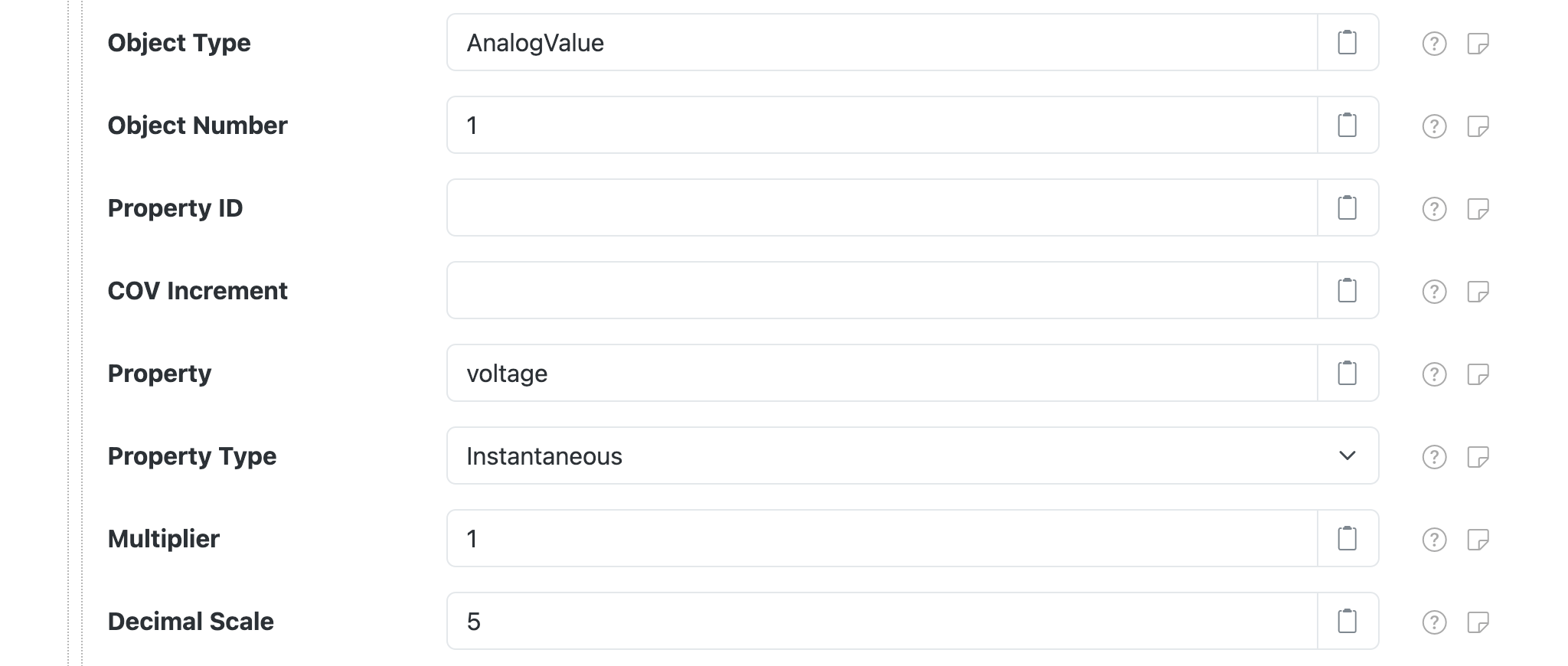

BACnet devices organize their data into objects that have properties, and SolarNode will map BACnet object property values into datum property values. You must configure settings for each datum property you want to collect. You can configure as many property settings as you like, using the + and - buttons to add/remove configurations.

Each property configuration contains the following settings:

Setting	Default	Description
Object Type		The BACnet object type to collect data from. Can be specified as a name, like analog-input or AnalogInput, or the associated integer code, like 0.
Object Number		The BACnet object type instance number to collect data from.
Property ID	present-value	The BACnet object property identifier to collect data from. Can be specified as a name, like present-value or PresentValue, or the associated integer code, like 85.
COV Increment		An optional decimal change-of-value (COV) event threshold to request when subscribing to COV events, essentially filtering the COV events unless the property value has changed by at least this amount. This value only affects the change-of-value (COV) event subscription, and has no impact on the polling schedule configured. This can be used to limit the number of COV events generated by highly-dynamic BACnet property values, so events are only generated if the value changes by at least this amount.
Property		The name of the datum property to save the BACnet value as. Property names represent what the associated data value is, and SolarNetwork has many standardized names that you should consider using.
Property Type	Instantaneous	The type of datum property to use.
Multiplier	1	For numeric data types, a multiplier to apply to the BACnet property value to normalize it into a standard unit. The property values stored in SolarNetwork should be normalized into standard base units if possible. For example if a power meter reports power in kilowattts then a unit multiplier of 1000 can be used to convert the values into watts.
Decimal Scale	5	For numeric data types, a maximum number of decimal places to round decimal numbers to, or -1 to not do any rounding. Setting to 0 rounds decimals to whole numbers.

BACnet object and property types

BACnet defines a comprehensive enumeration of possible Object Type and Property ID values. See the Lookup tab on the example CSV configurer sheet for a complete listing.
