51. Modbus Server¶

SolarNode can host a Modbus TCP or serial (RTU) server populated with data collected by datum sources or updated though controls. This allows other devices to query SolarNode for data (or update it) using the Modbus protocol. This is an advanced plugin that requires specific low-level knowledge of the Modbus services you plan to integrate with.

This integration is provided by the Modbus Server plugin, which is included in the solarnode-app-io-modbus-server package in SolarNodeOS.

51.1 Use¶

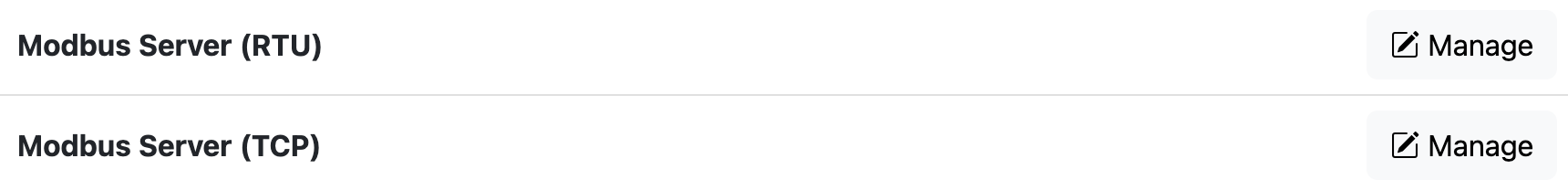

Once installed, Modbus Server (RTU) and Modbus Server (TCP) components will appear on the Settings > Components page on your SolarNode. Click on the Manage button to configure servers. You will need to add one configuration for each port you want to expose a Modbus server on.

Each Modbus server configuration is divided into four parts:

1. Server configuration (e.g. TCP port or serial device)
2. Unit configuration (e.g. Modbus Unit ID)
3. Register block configuration (e.g. Modbus register starting address)
4. Measurement configuration (e.g. mapping data into Modbus registers)

Each configuration part contains a list of the subsequent configuration part. That is, a server configuration can have multiple unit configurations, which can contain multiple register block configurations, which can have multiple measurement configurations.

51.2 Register word order¶

All multi-register data (anything more than 16 bits) is stored in most-to-least significant register (word) order, sometimes referred to as big endian or network order. Specifically, the highest bits of the data are stored first, in smaller numbered registers, followed by lower bits in larger numbered registers. For example a 32-bit number requires two registers. If the register address for this number is 0 and the server is updated to hold the value 0x12345678 then registers 0-1 will look like this:

0:  0x1234
1:  0x5678

51.3 Data persistence¶

By default the Modbus Server data is not preserved when SolarNode restarts. That means all registers are effectively cleared to 0 when SolarNode restarts. If you would like to have the registers preserved instead, a ModbusRegisterDao service must be available at runtime. The Modbus Server Persistence (JDBC) plugin provides this.

With or without persistence configured, Modbus Server serves all requests from an in-memory register database. If the ModbusRegisterDao service is available, updates to the in-memory database are then also persisted to that service.

51.4 CSV Configurer¶

This plugin provides Modbus Server (RTU) CSV Configurer and Modbus Server (TCP) CSV Configurer components that will appear on the Settings > Services page. These components let you upload a CSV file to configure all Modbus Server components, without having to use the settings form.

51.4.1 Modbus Server CSV Configuration Format¶

The Modbus Server CSV Configuration uses the column structure detailed below, with each row representing an individual datum property to expose in Modbus server registers. A header row is required. Comment lines are allowed, just start the line with a # character (i.e. the first cell value). The entire comment line will be ignored.

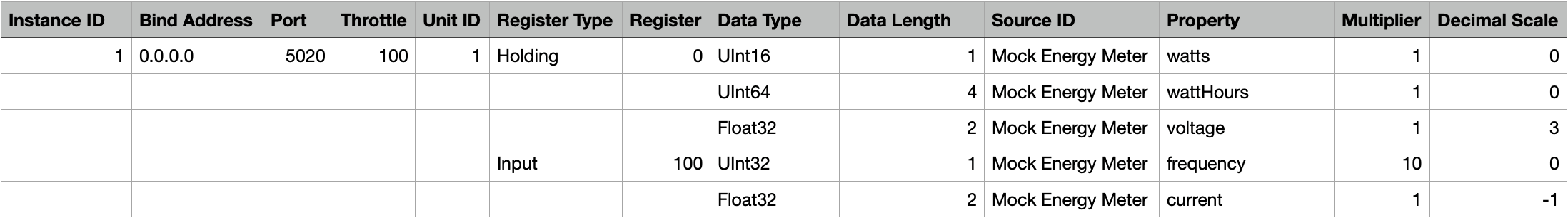

Here's an example screen shot of a TCP configuration in a spreadsheet application. It is for one server with one unit with two register blocks:

1. A Holding register block starting at register 0 with 3 datum properties: watts, wattHours, and voltage
2. An Input register block starting at register 100 with 2 datum properties: frequency and current

Spreadsheet applications generally allows you to export the sheet in the CSV format, which can then be loaded into SolarNode via the CSV Configurer.

51.4.1.1 Instance identifiers¶

Individual Modbus Device components are defined by the first column (Instance ID). You can assign any identifier you like (such as Meter, Inverter, and so on) or configure as a single dash character - to have SolarNode assign a simple number identifier. Once an Instance ID has been assigned on a given row, subsequent rows will use that value if the corresponding cell value is left empty.

51.4.1.2 CSV column definition¶

The following table defines all the CSV columns used by Modbus Server CSV Configuration. Columns A - D apply to the entire Modbus Server configuration, and only the values from the row that defines a new Instance ID will be used to configure the server. Thus you can omit the values from these columns when defining more than one register for a given server.

Columns E - N define the mapping of datum properties to Modbus registers: each row defines an individual datum property which occupies one or more Modbus registers.

51.4.2 Example CSV¶

Here is the CSV as shown in the previous TCP example configuration screen shot:

Instance ID,Bind Address,Port,Throttle,Unit ID,Register Type,Register,Data Type,Data Length,Source ID,Property,Multiplier,Decimal Scale
1,0.0.0.0,5020,100,1,Holding,0,UInt16,1,Mock Energy Meter,watts,1,0
,,,,,,,UInt64,4,Mock Energy Meter,wattHours,1,0
,,,,,,,Float32,2,Mock Energy Meter,voltage,1,3
,,,,,Input,100,UInt32,1,Mock Energy Meter,frequency,10,0
,,,,,,,Float32,2,Mock Energy Meter,current,1,-1

51.4.3 Additional server settings¶

Other TCP server settings or RTU server settings like Service Name or Allow Writes can be configured with special #param comment rows preceeding the start of a instance. You configure just 3 columns in these rows:

1. The literal string #param
2. The setting key
3. The setting value

The supported setting key values match the setting names generated when exporting SolarNode settings for the Modbus Service component:

Here is the CSV as shown in the example configuration screen shot above, with some additional settings:

Instance ID,Bind Address,Port,Throttle,Unit ID,Register Type,Register,Data Type,Data Length,Source ID,Property,Multiplier,Decimal Scale
#param,uid,My Server
#param,allowWrites,true
#param,daoRequired,true
#param,restrictUnitIds,true
1,0.0.0.0,5020,100,1,Holding,0,UInt16,1,Mock Energy Meter,watts,1,0
,,,,,,,UInt64,4,Mock Energy Meter,wattHours,1,0
,,,,,,,Float32,2,Mock Energy Meter,voltage,1,3
,,,,,Input,100,UInt32,1,Mock Energy Meter,frequency,10,0
,,,,,,,Float32,2,Mock Energy Meter,current,1,-1

51.5 Settings¶

To manage RTU or TCP server configurations in the SolarNode UI, the settings in the following sections are available.

51.5.1 RTU settings¶

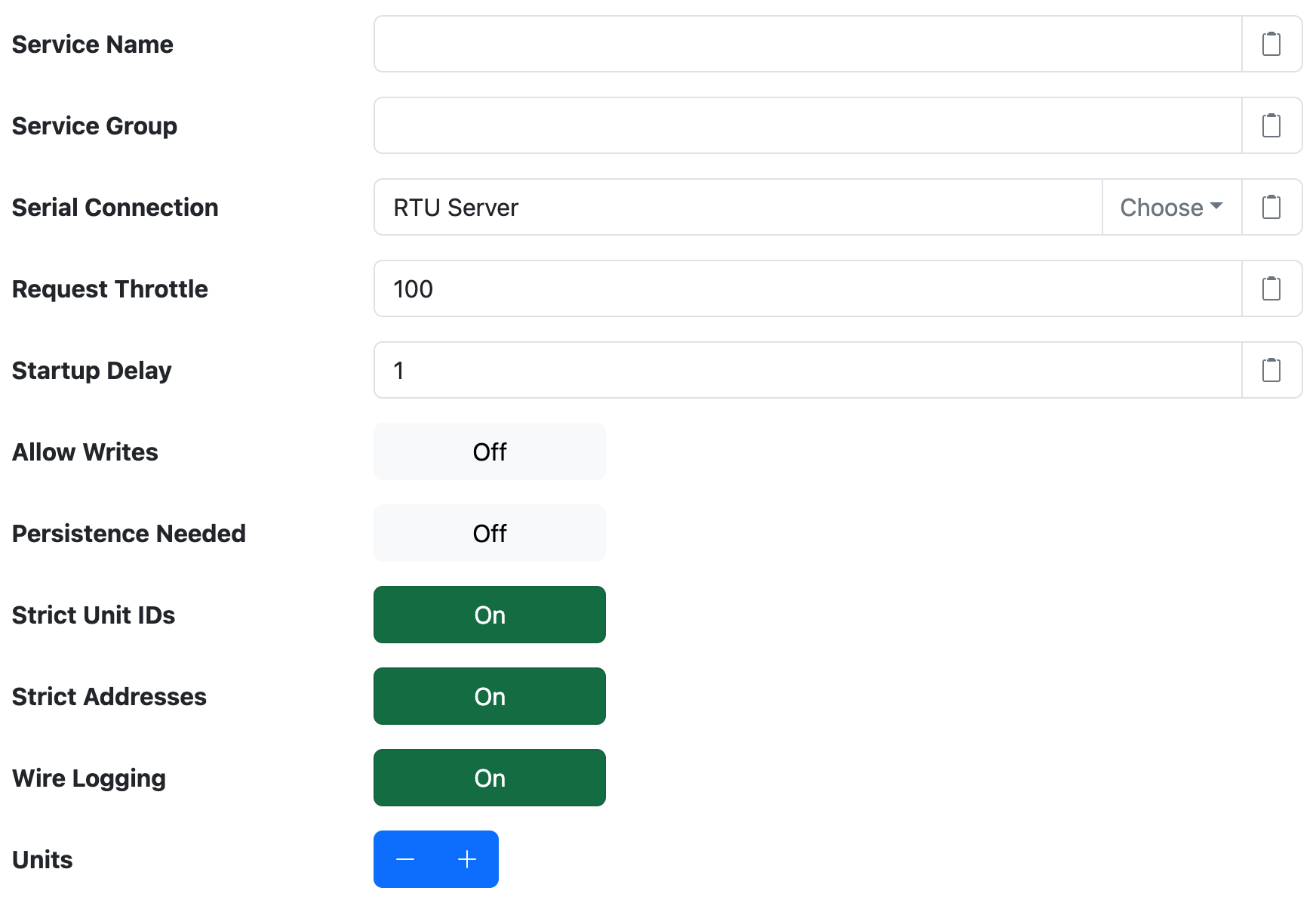

The RTU server configuration defines the serial port to use.

Each server configuration contains the following settings:

51.5.2 TCP settings¶

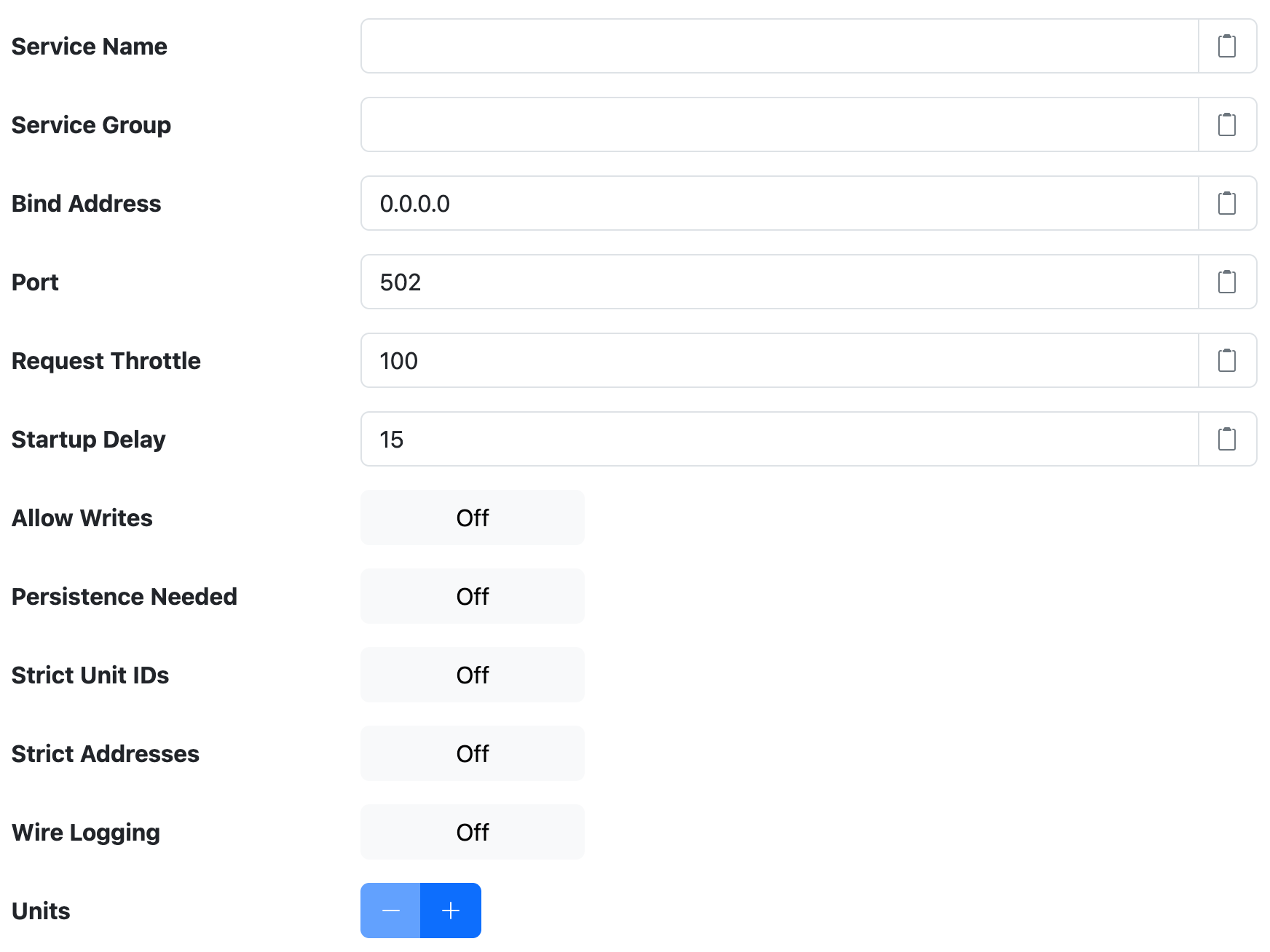

The TCP server configuration defines the port number and address to listen on.

Each server configuration contains the following settings:

51.5.3 SolarNodeOS port considerations¶

By default SolarNodeOS has a built-in firewall enabled that will not allow access to arbitrary TCP ports. Additionally, the SolarNode service runs as an unprivileged user that cannot listen on ports less than 1024. To work around these issues, you should use a port number 1024 or higher, for example 5020. Then you must open that port in the SolarNodeOS firewall, which by default is nftables and configured via the /etc/nftables.conf file. You can use a NAT rule in the firewall to redirect port 502 to your configured port, so Modbus clients use the standard port of 502. To open port 502 and redirect to 5020 like in this example, you'd add the following lines, after the existing ones that open ports 80 and 8080:

# Allows Modbus
add rule ip filter INPUT tcp dport 502 counter accept
add rule ip filter INPUT tcp dport 5020 counter accept

You'd then add the following NAT lines at the end:

# Redirect port 502 to 5020 for SolarNode Modbus server
add rule ip nat prerouting tcp dport 502 redirect to 5020

51.5.4 Unit configuration¶

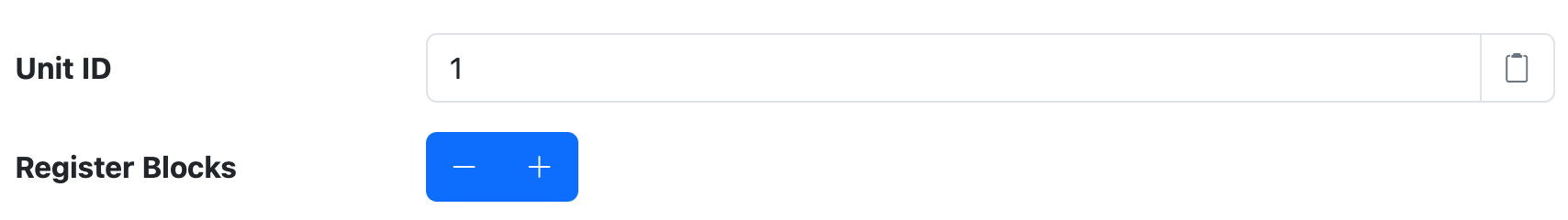

Each RTU and TCP Modbus server can support up to 256 unit configurations, numbered from 0 - 255.

Each unit configuration contains the following settings:

51.5.5 Register block configuration¶

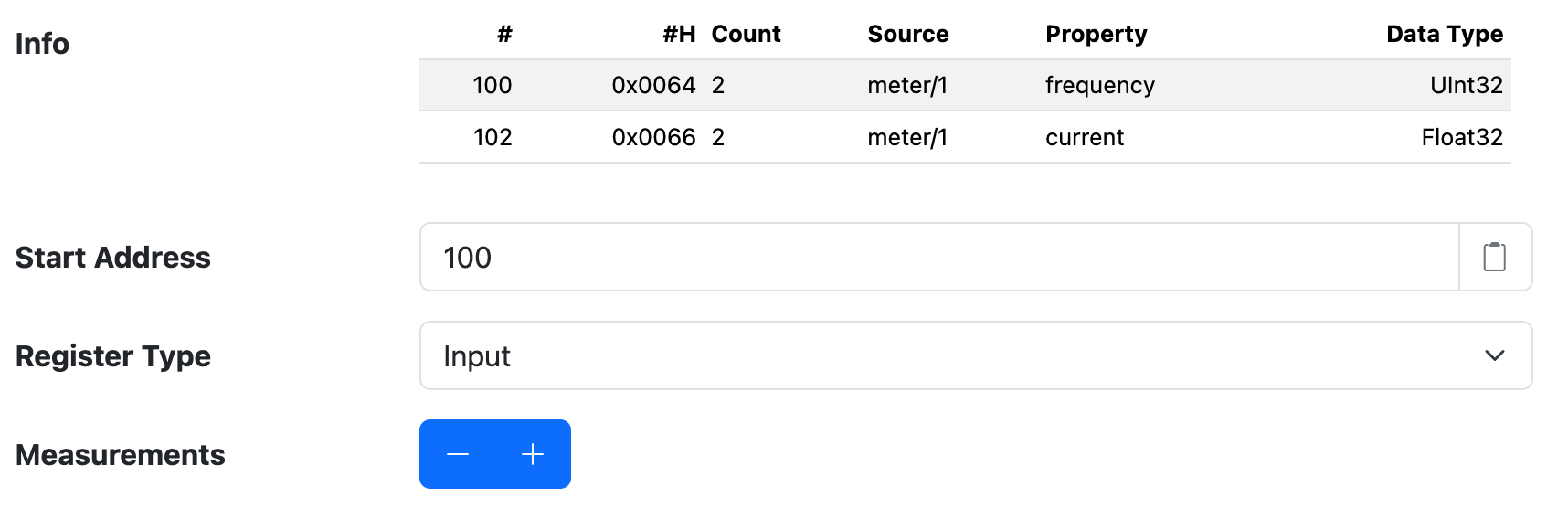

Register blocks are sets of contiguous Modbus registers. You configure a starting address and then each measurement configuration added to the block is mapped to Modbus registers based on the size required by each measurement.

Each register block configuration contains the following settings:

51.5.6 Measurement configuration¶

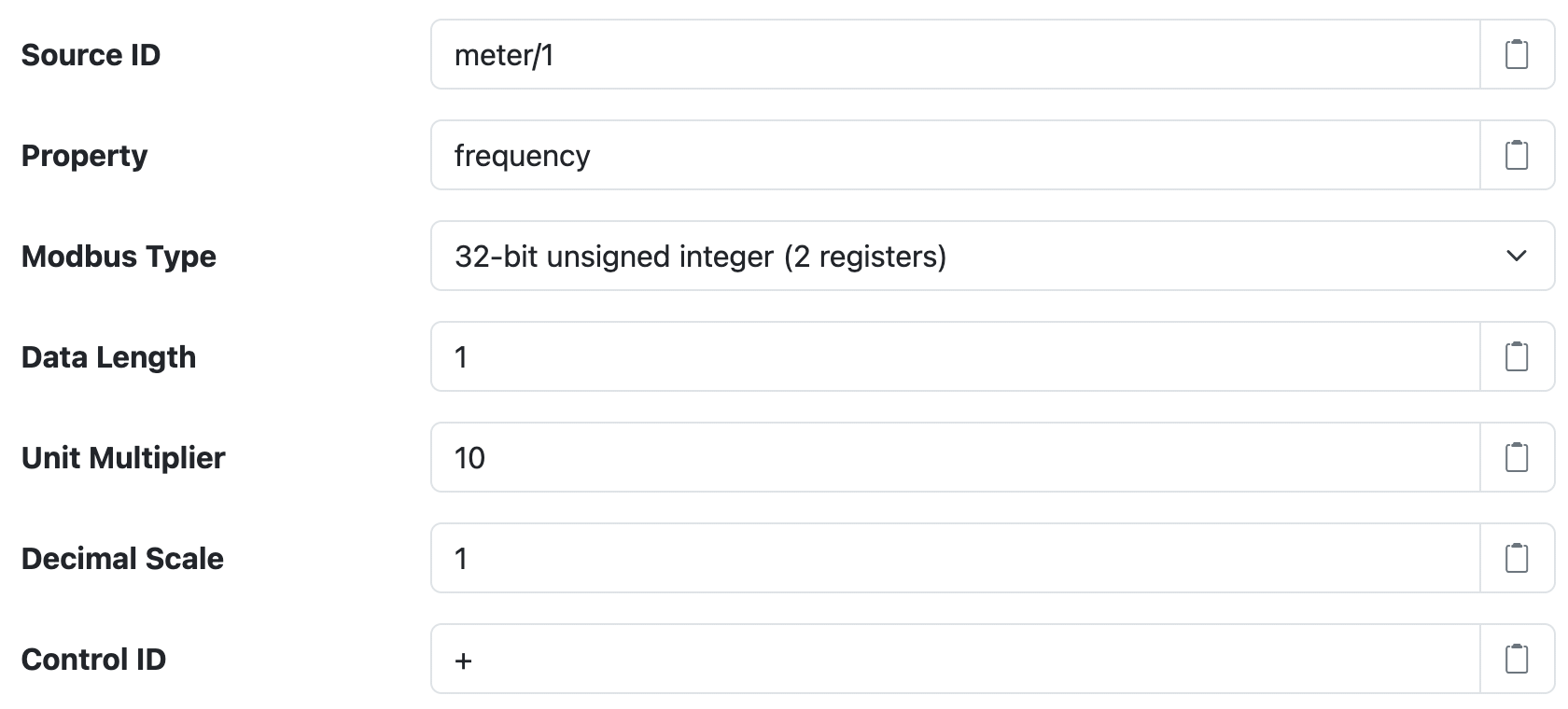

Measurement configurations define what data is made available in Modbus. They work by mapping properties of datum, collected by other SolarNode plugins, to Modbus registers. Thus you must configure the datum source ID and property name of each value you want to publish via Modbus.

Each measurement configuration contains the following settings:

51.6 Controls¶

If a measurement has a Control ID configured, then it will be exposed as a control that can be queried and updated as a normal control. They will appear on the Tools > Controls page in the SolarNode UI.

You can also use the SolarUser Instruction API to update the measurement value by issuing a SetControlParameter instruction that includes a single instruction parameter named the Control ID you configured for the control and the desired value as the parameter value.

For example, to set the test/float control to 29.0 an HTTP POST like this would update the value:

POST /solaruser/api/v1/sec/instr/add/SetControlParameter

{"nodeId":123,"params":{"test/float":"29.0"}}

You can configure an explicit control ID or use one of these shortcuts to derive the control ID from the source ID and/or property name:
