29. Modbus Device¶

This project provides SolarNode plugin that can collect arbitrary data from Modbus enabled devices. This is an advanced plugin that requires specific low-level knowledge of the device you want to collect data from.

This datum source is provided by the Modbus Datum Source plugin, which is included in the solarnode-app-modbus package in SolarNodeOS.

29.1 Use¶

Once installed, a new Modbus Device component will appear on the Settings > Components page on your SolarNode. Click on the Manage button to configure devices. You'll need to add one configuration for each Modbus device you want to collect data from.

You can also configure components with the CSV Configurer, detailed in the following section.

29.2 CSV Configurer¶

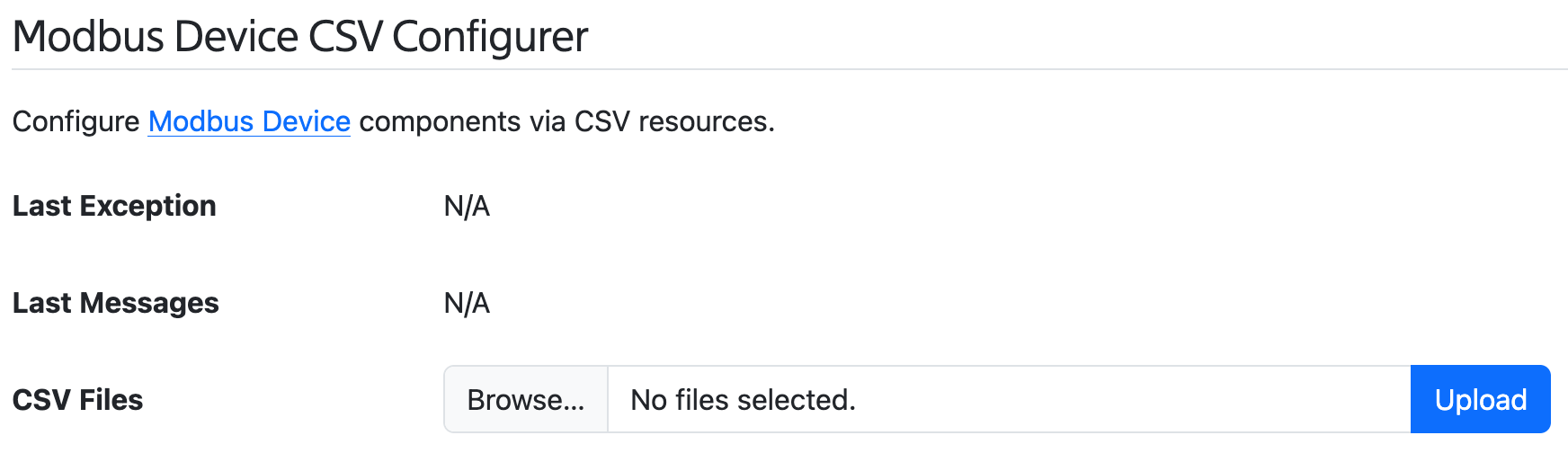

This plugin provides a Modbus Device CSV Configurer service will appear on the Settings > Services page. This service lets you upload a Modbus CSV Configuration file to configure all Modbus Device components, without having to use the settings form directly.

29.2.1 Modbus CSV Configuration Format¶

The Modbus CSV Configuration uses the column structure detailed below, with each row representing an individual datum property to read from the Modbus device. A header row is required. Comment lines are allowed, just start the line with a # character (i.e. the first cell value). The entire comment line will be ignored.

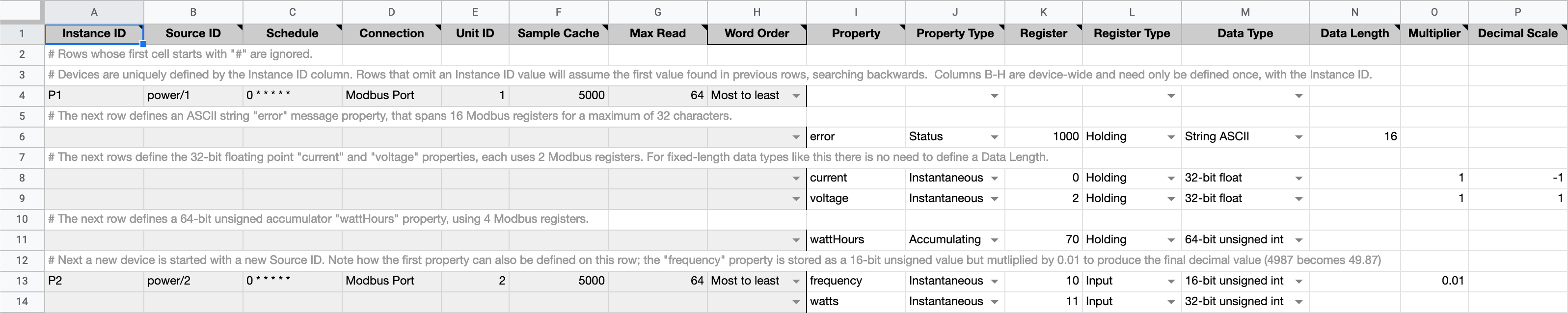

Here's an example screen shot of a configuration in a spreadsheet application. It is for two devices:

1. Device P1 with 4 datum properties: error, current, voltage, and wattHours
2. Device P2 with 2 datum properties: frequency and watts

Spreadsheet applications generally allows you to export the sheet in the CSV format, which can then be loaded into SolarNode via the CSV Configurer.

29.2.1.1 Instance identifiers¶

Individual Modbus Device components are defined by the first column (Instance ID). You can assign any identifier you like (such as Meter, Inverter, and so on) or configure as a single dash character - to have SolarNode assign a simple number identifier. Once an Instance ID has been assigned on a given row, subsequent rows will use that value if the corresponding cell value is left empty.

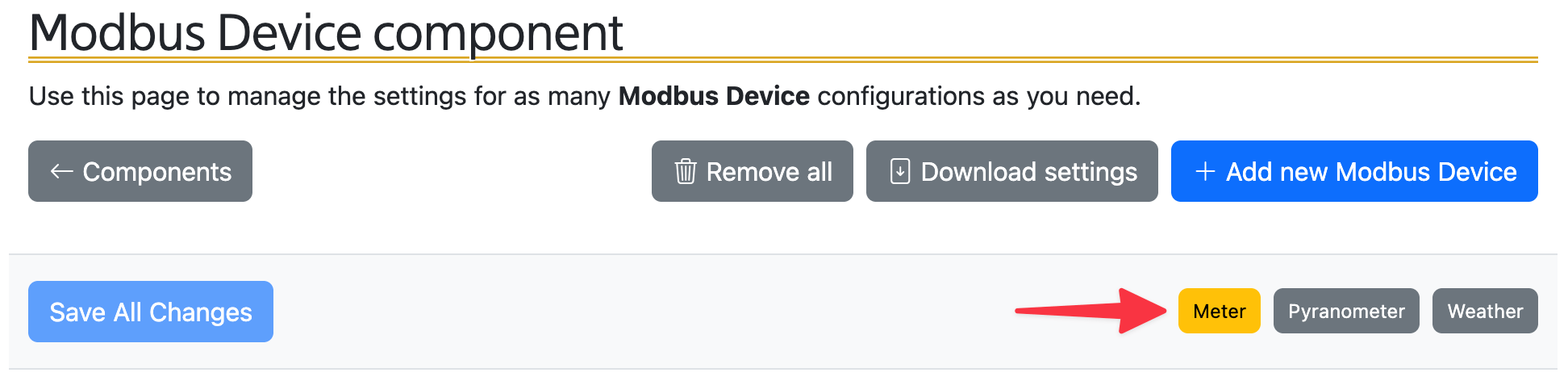

Here's an example of how 3 custom instance IDs Meter, Pyranometer, and Weather appear in the SolarNode UI:

29.2.1.2 CSV column definition¶

The following table defines all the CSV columns used by Modbus Device CSV Configuration. Columns A - H apply to the entire Modbus Device configuration, and only the values from the row that defines a new Instance ID will be used to configure the device. Thus you can omit the values from these columns when defining more than one property for a given device.

Columns I - Q define the mapping of Modbus registers to datum properties: each row defines an individual datum property.

29.2.2 Example CSV¶

Here is the CSV as shown in the example configuration screen shot above (comments have been removed for brevity):

Instance ID,Source ID,Schedule,Connection,Unit ID,Sample Cache,Max Read,Word Order,Property,Property Type,Register,Register Type,Data Type,Data Length,Multiplier,Decimal Scale,Expression
P1,power/1,0 * * * * *,Modbus Port,1,5000,64,Most to least,,,,,,,,,
,,,,,,,,error,Status,1000,Holding,String ASCII,16,,,
,,,,,,,,current,Instantaneous,0,Holding,32-bit float,,1,-1,
,,,,,,,,voltage,Instantaneous,2,Holding,32-bit float,,1,1,
,,,,,,,,wattHours,Accumulating,70,Holding,64-bit unsigned int,,,,
P2,power/2,0 * * * * *,Modbus Port,2,5000,64,Most to least,frequency,Instantaneous,10,Input,16-bit unsigned int,,0.01,,
,,,,,,,,watts,Instantaneous,11,Input,32-bit unsigned int,,,,

29.3 Settings¶

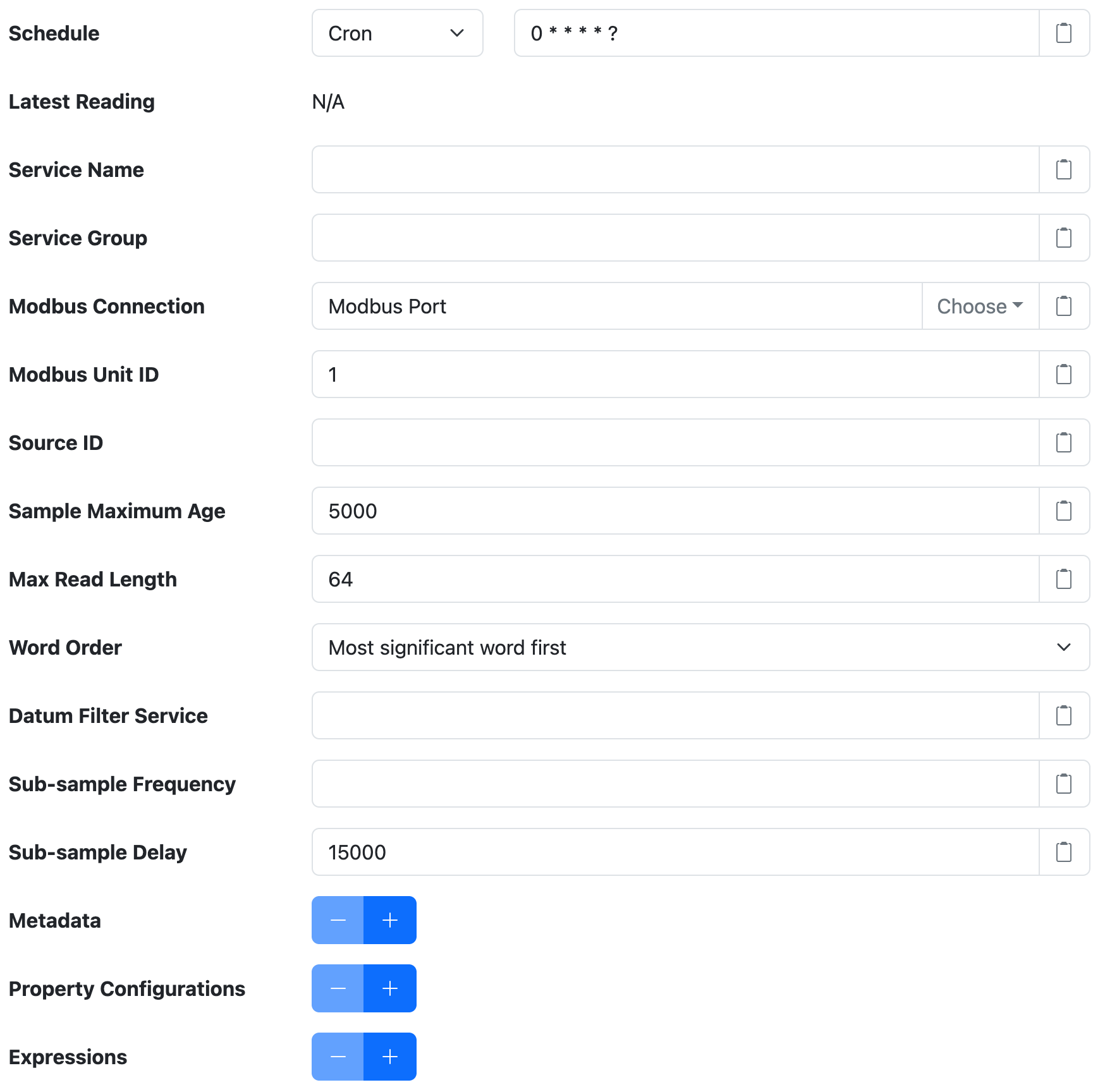

Each configuration contains the following overall settings:

29.3.1 Overall settings notes¶

Modbus Port

This is the Service Name of the Modbus component configured elsewhere in SolarNode. You must configure that component with the proper connection settings for your Modbus network, configure a unique service name on that component, and then enter that same service name here.

Source ID

This value unique identifies the data collected from this device, by this node, on SolarNetwork. Each configured device should use a different value.

Sample Maximum Age

SolarNode will cache the data collected from the Modbus device for at least this amount of time before refreshing data from the device again. Some devices do not refresh their values more than a fixed interval, so this setting can be used to avoid reading data unnecessarily. This setting also helps in highly dynamic configurations where other plugins request the current values from the device frequently.

Max Read Length

This plugin will try to read as many adjacent Modbus registers as possible when requesting data from the device. Some devices have trouble returning large numbers of registers at once, however. Configuring this setting to a smaller value will cause the plugin to make multiple smaller requests for data when necessary to work better with those devices.

29.3.2 Metadata settings¶

Metadata settings allow you to add datum source metadata to the configured datum stream.

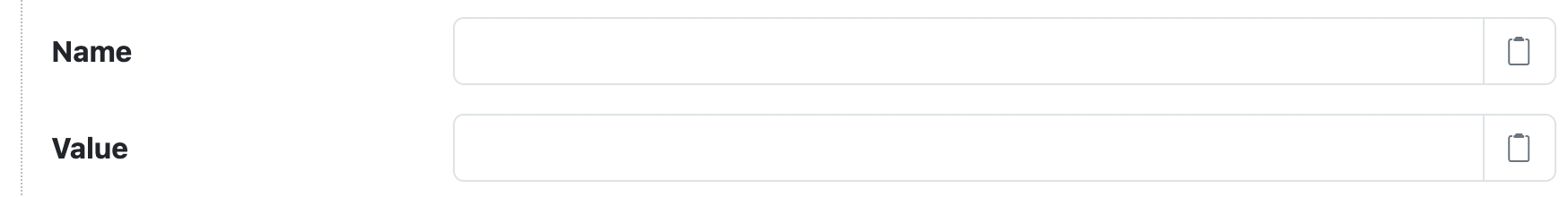

Each metadata configuration contains the following settings:

29.3.3 Datum property settings¶

You must configure settings for each datum property you want to collect from each device. You can configure as many property settings as you like, using the + and - buttons to add/remove property configurations.

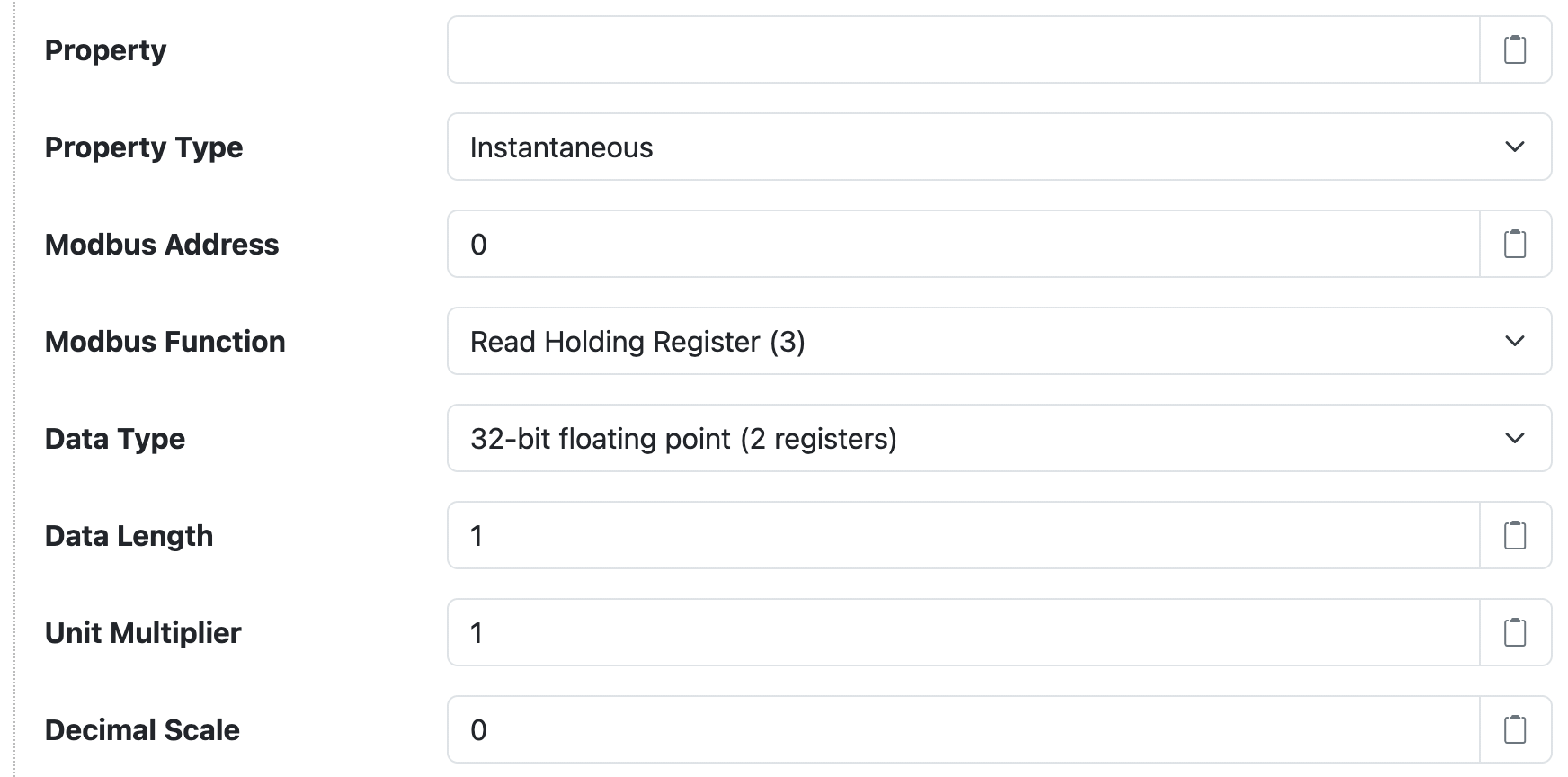

Each property configuration contains the following settings:

Setting	Description
Property	The name of the datum property to save the Modbus value as. Property names represent what the associated data value is, and SolarNetwork has many standardized names that you should consider using. For example the EnergyDatum class defines properties such as watts and wattHours for electrical energy. See the note about the Metadata property type for more information about the property name syntax for that type.
Property Type	The type of datum property to use. Each property must be categorized as Accumulating, Instantaneous, Status, or Metadata. Accumulating is used for properties that record a value that accumulates over time, such as wattHours captured from a power meter. Instantaneous is used for properties that capture values that record independent values over time, such as watts. Status is used for non-numeric values such as string status messages. Metadata is for mostly unchanging data, like a device serial number or firmware version. The property names for metadata should be a metadata path, for example /pm/deviceInfo/serialNumber.
Modbus Address	The starting register address to read Modbus data from (zero-based).
Modbus Function	The Modbus read function to execute.
Data Type	The type of data to expect from the read Modbus register(s). The data type to interpret the values captured from the Modbus registers as. Note that only the Status and Metadata property types can accept non-numeric data types such as strings.
Data Length	For variable length data types such as strings, the number of Modbus registers to read.
Unit Multiplier	For numeric data types, a multiplier to apply to the Modbus value to normalize it into a standard unit. The property values stored in SolarNetwork should be normalized into standard base units if possible. For example if a power meter reports power in kilowattts then a unit multiplier of 1000 can be used to convert the values into watts.
Decimal Scale	For numeric data types, a maximum number of decimal places to round decimal numbers to, or -1 to not do any rounding. This setting will round decimal numbers to at most this number of decimal places. Setting to 0 rounds decimals to whole numbers. Setting to -1 disables rounding completely.

29.3.4 Expressions¶

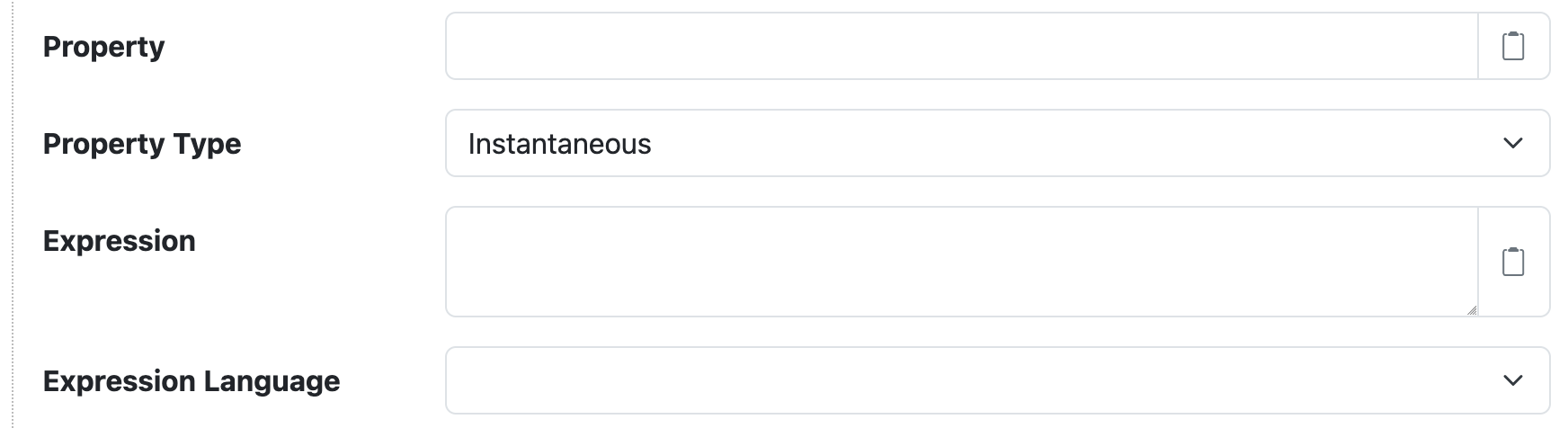

Properties can be defined using expressions. Expressions allow you to configure datum properties that are dynamically calculated from other properties or raw Modbus register values.

29.3.4.1 Expression root object¶

The root object is a DatumExpressionRoot that lets you treat all datum properties as expression variables directly. See the SolarNode Expressions guide for more information. In addition, the following properties are available:

Any Modbus registers referenced via reg[x] expressions will be automatically read via the Modbus read holding register function, unless that same register is referenced also in a normal property configuration, in which case the Modus function defined there will be used.

29.3.4.2 Expression examples¶

Given raw Modbus holding register data like the following:

[000]: 0xfc1e, 0xf0c3, 0x02e3, 0x68e7, 0x0002, 0x1376, 0x1512, 0xdfee
[200]: 0x44f6, 0xc651, 0x4172, 0xd3d1, 0x6328, 0x8ce7

and assuming a property config that maps register 202 to a 64-bit floating point property bigFloat:

Then here are some example expressions and the results they would produce:

29.4 Sub-sampling¶

The Sub-sample Frequency setting allows you to configure the datum source to generate datum (referred to as a sample here) at a higher rate than the normal Schedule dictates. This would typically be combined with the Datum Filter Service setting, to enable filtering the sub-sample datum into some sort of aggregate at the "normal" sample rate.

For example, you might want to collect datum at a rate of once per minute but achieve better accuracy in each property value by capturing several values per minute and only saving the average of those captured values in SolarNetwork.

Here is an example of the settings you would configure to do this, with a sub-sample rate of once per second:

In this example, My Sub-Sample Throttle Filter is a Downsample Filter configured with these settings:

29.4.1 Sub-sample filter properties¶

The configured Datum Filter Service will be passed every datum captured, both sub-samples and "normal" samples. Each sub-sample datum will be passed a special subsample=true parameter, however, so the filter "knows" which datum are sub-samples and which are "normal" samples.
