49. Modbus Control

This project provides SolarNode plugin that can be used to set arbitrary Modbus register values, such as numbers or strings.

This datum source is provided by the Modbus Control plugin, which is included in the solarnode-app-modbus package in SolarNodeOS.

49.1 Use

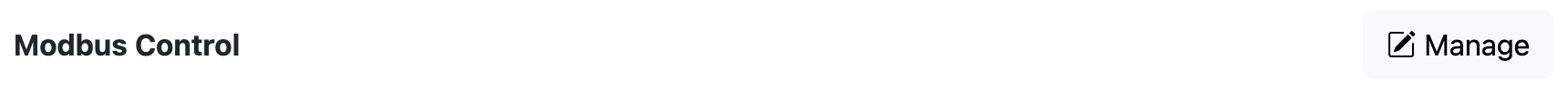

Once installed, a new Modbus Control component will appear on the Settings > Components page on your SolarNode. Click on the Manage button to configure devices. You'll need to add one configuration for each Modbus device you want to control.

Using this plugin you'll define one SolarNode control per Modbus register (or registers, for data types that require more than one). For example you might define a /thermostat/temp/comfort control that writes a temperature value as a 32-bit floating point value to two Modbus registers.

A status indicator will appear at the top of the device settings, which will display the latest readings obtained from the configured Modbus registers.

Each Modbus Control component is specific to one Modbus device. You can add as many components as you like, if you want to control multiple devices.

49.2 CSV Configurer

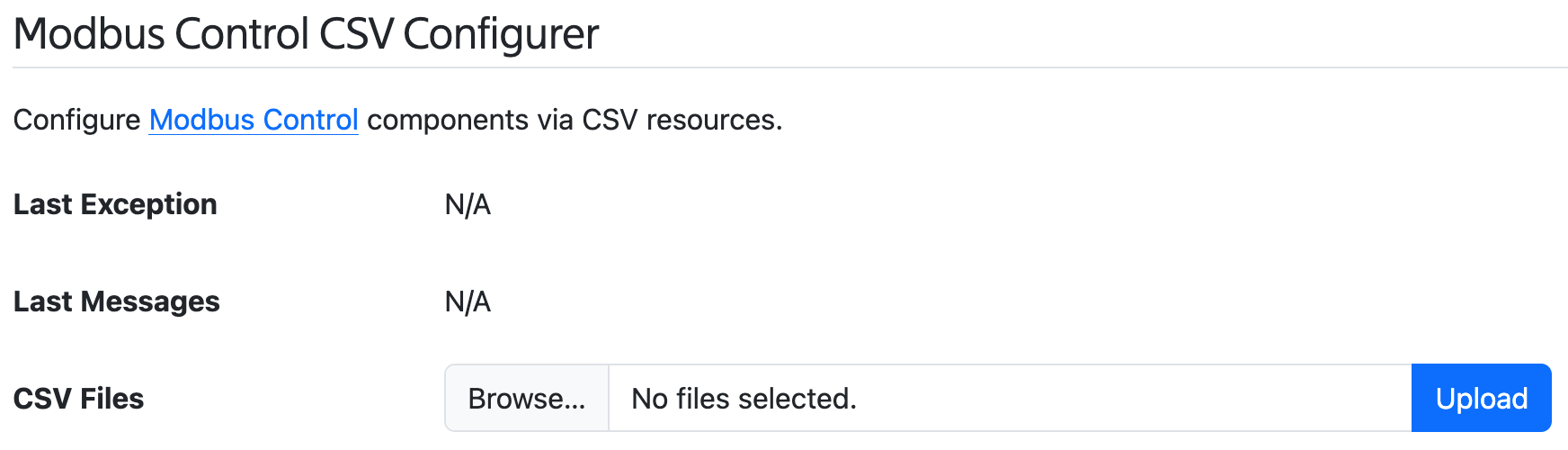

This plugin also provides a Modbus Control CSV Configurer component will appear on the Settings > Services page. This component lets you upload a Modbus Control CSV Configuration file to configure all Modbus Control components, without having to use the settings form.

CSV Configuration example

49.2.1 Modbus Control CSV Configuration Format

The Modbus Control CSV Configuration uses the column structure detailed below, with each row representing an individual control to write to the Modbus device. A header row is required. Comment lines are allowed, just start the line with a # character (i.e. the first cell value). The entire comment line will be ignored.

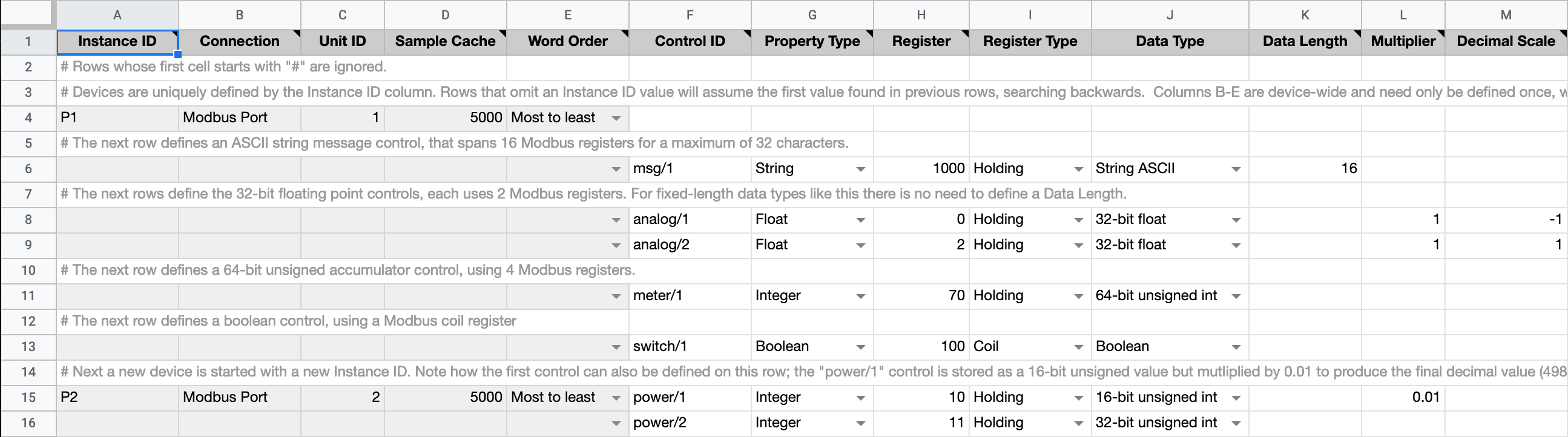

Here's an example screen shot of a configuration in a spreadsheet application. It is for two devices:

  1. Device P1 with 5 controls: msg/1, analog/1, analog/2, meter/1, and switch/1
  2. Device P2 with 2 controls: power/1 and power/2

Spreadsheet applications generally allows you to export the sheet in the CSV format, which can then be loaded into SolarNode via the CSV Configurer.

CSV Configuration example

Tip

You can copy this example sheet to get started.

49.2.1.1 Instance identifiers

Individual Modbus Control components are defined by the first column (Instance ID). You can assign any identifier you like (such as Relay, PLC, and so on) or configure as a single dash character - to have SolarNode assign a simple number identifier. Once an Instance ID has been assigned on a given row, subsequent rows will use that value if the corresponding cell value is left empty.

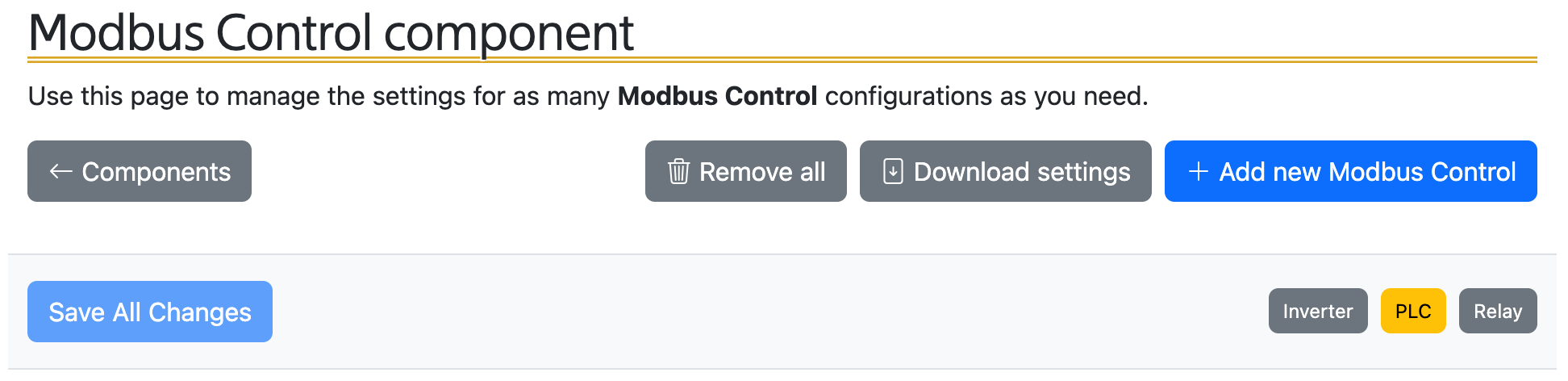

Here's an example of how 3 custom instance IDs Relay, PLC, and Inverter appear in the SolarNode UI:

Modbus Control instance names

49.2.1.2 CSV column definition

The following table defines all the CSV columns used by Modbus Device CSV Configuration. Columns A - H apply to the entire Modbus Device configuration, and only the values from the row that defines a new Instance ID will be used to configure the device. Thus you can omit the values from these columns when defining more than one property for a given device.

Columns I - Q define the mapping of Modbus registers to datum properties: each row defines an individual datum property.

Col Name Type Default Description
A Instance ID string The unique identifier for a single Modbus Device component. Can specify - to automatically assign a simple number value, which will start at 1.
B Connection string Modbus Port The service name of the Modbus connection to use.
C Unit ID integer 1 The Modbus unit ID of the device to collect data from (1 - 255).
D Sample Cache integer 5000 A minimum time to cache captured Modbus data, in milliseconds.
E Word Order enum Most to least For multi-register data types, the ordering to use when combining them. Must be either Most to least or Least to most, and can be shortened to just m or l.
F Control ID string The node-unique identifier for the control.
G Property Type enum Boolean The type of control property to use. Must be one of Boolean, Float, Integer, Percent, or String, and can be shortened to just b, f, i, p, or s.
H Register integer The register address to read Modbus data from (zero-based). For multi-register data types this is the first register to read from.
I Register Type enum Coil The Modbus write function to execute. Must be one of Coil or Holding.
J Data Type enum Boolean The type of data to expect from the read Modbus register(s). Must be one of Boolean or bit, 16-bit float or f16, 32-bit float or f32, 16-bit signed int or i16, 16-bit unsigned int or u16, 32-bit signed int or i32, 32-bit unsigned int or u32, 64-bit signed int or i64, 64-bit unsigned int or u16, Bytes or b, String UTF-8 or s, String ASCII or a.
K Data Length integer For variable length data types such as strings, the number of Modbus registers to read.
L Multiplier decimal 1 For numeric data types, a multiplier to apply to the Modbus value to normalize it into a standard unit.
M Decimal Scale integer 0 For numeric data types, a maximum number of decimal places to round decimal numbers to, or -1 to not do any rounding.

49.2.2 Example CSV

Here is the CSV as shown in the example configuration screen shot above (comments have been removed for brevity):

Instance ID,Connection,Unit ID,Sample Cache,Word Order,Control ID,Property Type,Register,Register Type,Data Type,Data Length,Multiplier,Decimal Scale
P1,Modbus Port,1,5000,Most to least,,,,,,,,
,,,,,msg/1,String,1000,Holding,String ASCII,16,,
,,,,,analog/1,Float,0,Holding,32-bit float,,1,-1
,,,,,analog/2,Float,2,Holding,32-bit float,,1,1
,,,,,meter/1,Integer,70,Holding,64-bit unsigned int,,,
,,,,,switch/1,Boolean,100,Coil,Boolean,,,
P2,Modbus Port,2,5000,Most to least,power/1,Integer,10,Holding,16-bit unsigned int,,0.01,
,,,,,power/2,Integer,11,Holding,32-bit unsigned int,,,

49.3 Settings

Modbus Control settings

Each configuration contains the following overall settings:

Setting Description
Service Name A name to associate this control configuration with.
Service Group A group name to associate this control Configuration with.
Modbus Connection The service name of the Modbus connection to use. You must configure that component with the proper connection settings for your Modbus network, configure a unique service name on that component, and then enter that same service name here.
Modbus Unit ID The ID of the Modbus device to control, from 1 - 255.
Sample Maximum Age A minimum time to cache captured Modbus data, in milliseconds. SolarNode will cache the data collected from the Modbus device for at least this amount of time before refreshing data from the device again. Some devices do not refresh their values more than a fixed interval, so this setting can be used to avoid reading data unnecessarily. This setting also helps in highly dynamic configurations where other plugins request the current values from the device frequently.
Max Read Length The maximum number of Modbus registers to read at once. This can be used to work with Modbus devices that have trouble reading large ranges at once.
Word Order The register ordering for multi-register data types. Consult your Modbus device's documentation on which to use.

49.3.1 Property settings

Property configurations define a mapping between the SolarNode control and a Modbus register (or set of registers). You can configure as many property settings as you like, using the + and - buttons to add/remove property configurations (and thus, add/remove controls).

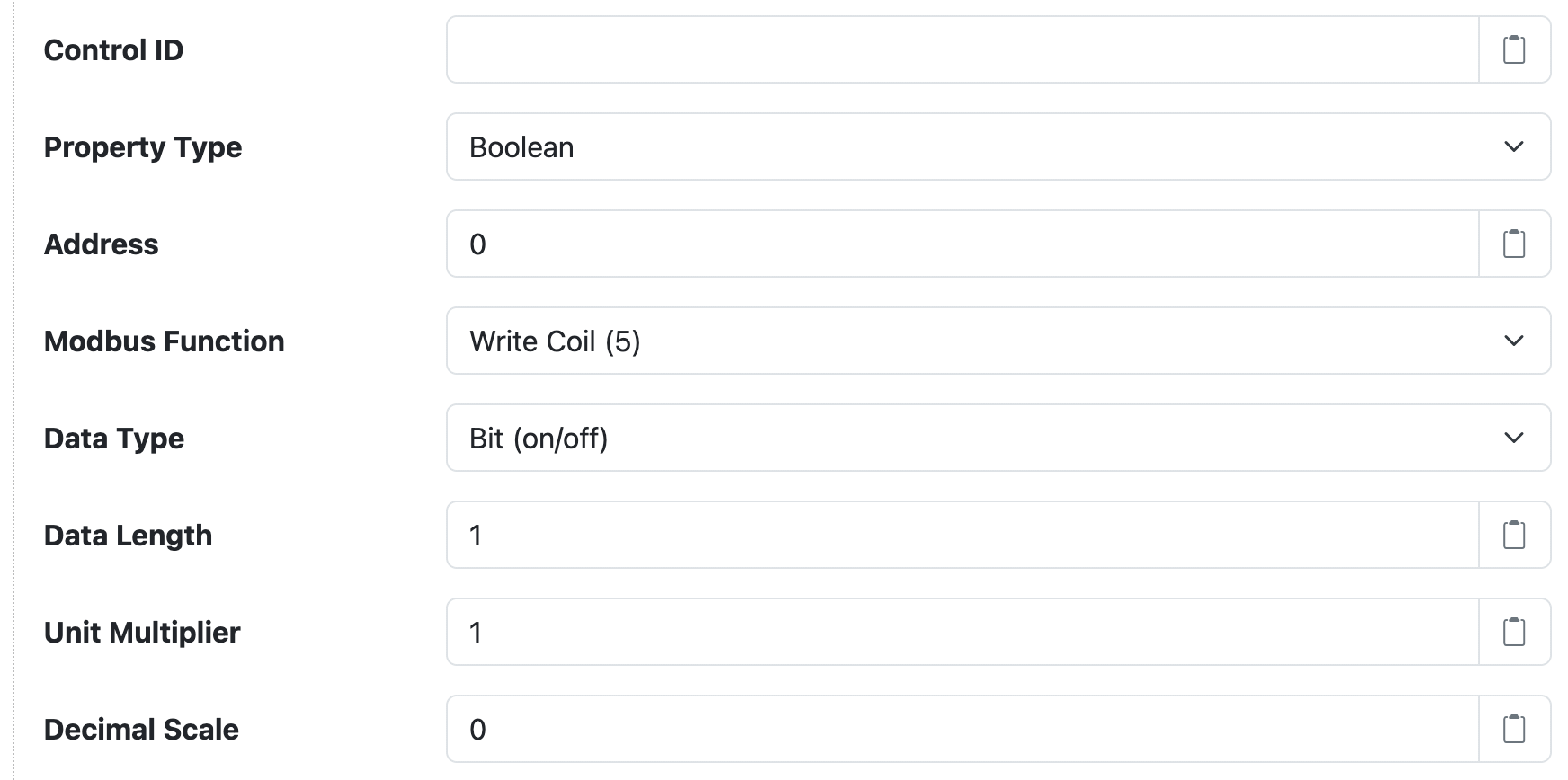

Modbus Control property settings

Each property configuration contains the following settings:

Setting Description
Control ID A name to associate this control configuration with. This should be unique amongst all control IDs deployed on the SolarNode. By convention, control IDs are grouped into a hierarchy via slash characters, for example /modem/power/1. This ID will also be used as the datum source ID when the control value is posted to SolarNetwork.
Property Type The SolarNode control type to use. Each property must be categorized as Boolean (on/off), Float (decimal number), Integer (whole number), Percent (decimal number between 0 and 1), or String.
Address The starting register address to read Modbus data from (zero-based). Note this value is the zero-based address to read. Sometimes documentation for Modbus devices list the addresses in one-based notation. If that is the case for your device, simply subtract one from the documented address here.
Modbus Function The Modbus write function to execute.
Data Type The type of data to write to the Modbus register(s). The data type to interpret the values captured from the Modbus registers as. Note that only the Status property type can accept non-numeric data types such as strings.
Data Length For variable length data types such as strings, the number of Modbus registers to write.
Unit Multiplier For numeric data types, a multiplier to apply to the Modbus value to normalize it into a standard unit. The property values stored in SolarNetwork should be normalized into standard base units if possible. For example if a power meter reports power in kilowattts then a unit multiplier of 1000 can be used to convert the values into watts. When writing values to Modbus, the value will be divided by this amount first.
Decimal Scale For numeric data types, a maximum number of decimal places to round decimal numbers to. This setting will round decimal numbers to at most this number of decimal places. Setting to 0 rounds decimals to whole numbers. Setting to -1 disables rounding completely.

49.4 Control manipulation

Once configured each control can be changed on the node itself or via the SolarNetwork API.

49.4.1 SolarNode manipulation

You can set a control value using the SolarNode GUI once the component is configured. Visit the Tools > Controls page to manage the available controls.

49.4.2 SolarNetwork manipulation

The SolarUser Instruction API can be used to change the control from anywhere in the world, by requesting the SolarNode to perform a SetControlParameter instruction and passing a single instruction parameter named the Control ID you configured for the control and the desired value as the parameter value.

For example, to set the test/float control to 29.0 an HTTP POST like this would update the value:

POST /solaruser/api/v1/sec/instr/add/SetControlParameter

{"nodeId":123,"params":{"test/float":"29.0"}}

49.4.2.1 DemandBalanceGeneration instruction support

The DemandBalanceGeneration instruction is also supported, which is a specialized variation of SetControlParameter where a single instruction parameter named the Control ID you configured for the control and the desired integer percentage as the parameter value.
